GEORARAR CONCRETTO GPR

Wall Penetrating Radar (WPR)

See in and through walls

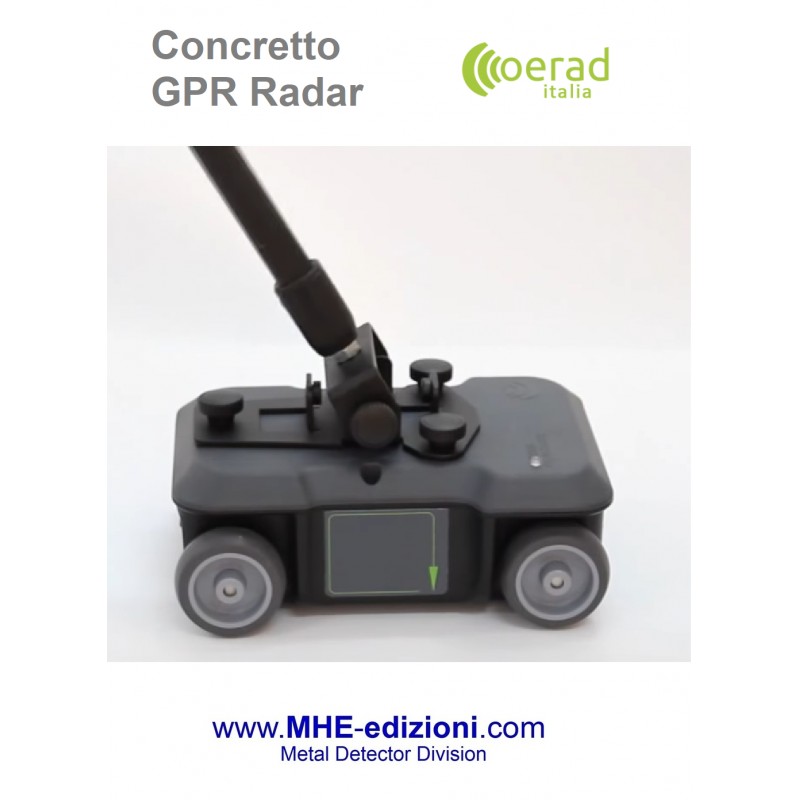

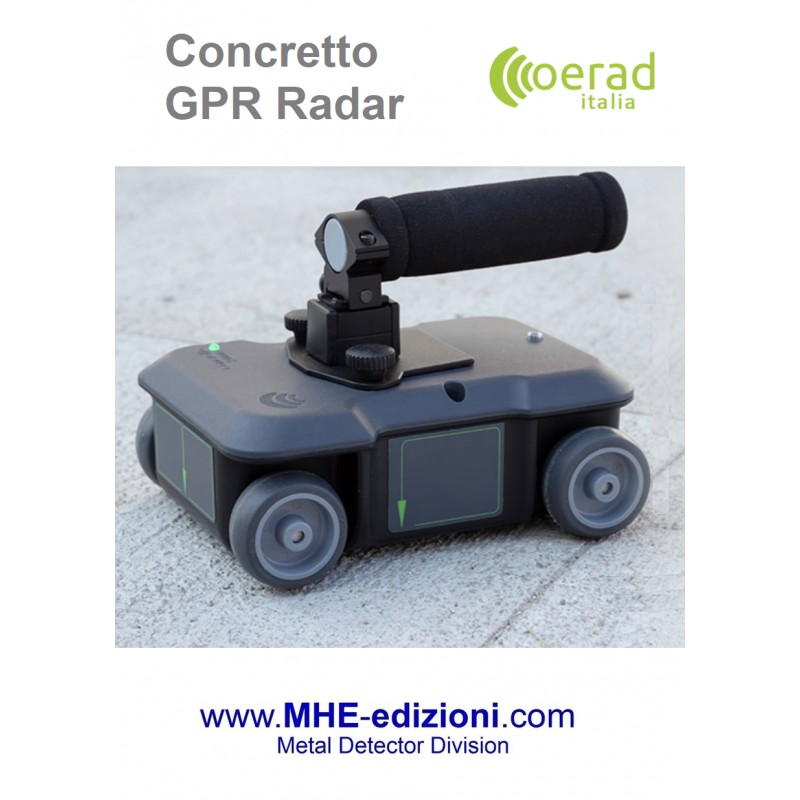

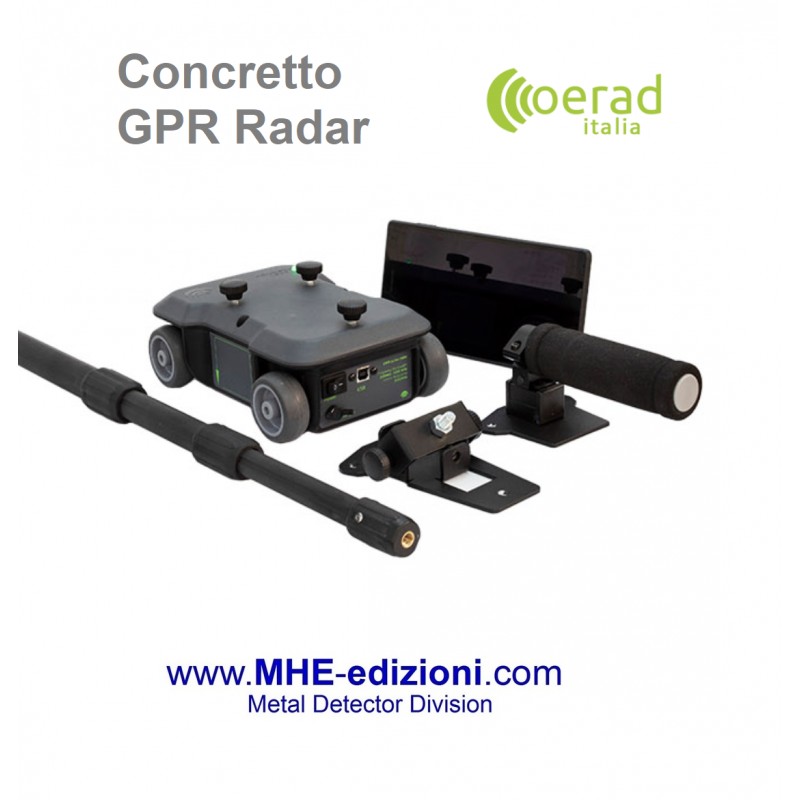

Concretto is a lightweight, portable and sturdy Wall Penetrating Radar (WPR) - an indispensable tool for every construction worker, inspector or repairs man. Concretto will ensure you:

  • Excellent penetration depth in concrete and brick floors and walls
  • Know where to drill without damaging the structure or your equipment
  • Can quickly assess the stability of a wall, road or bridge
  • Find rebars, wires, cables and pipes on the spot

Material Stability Evaluation

Concrete Uniformity & Stability Assessment

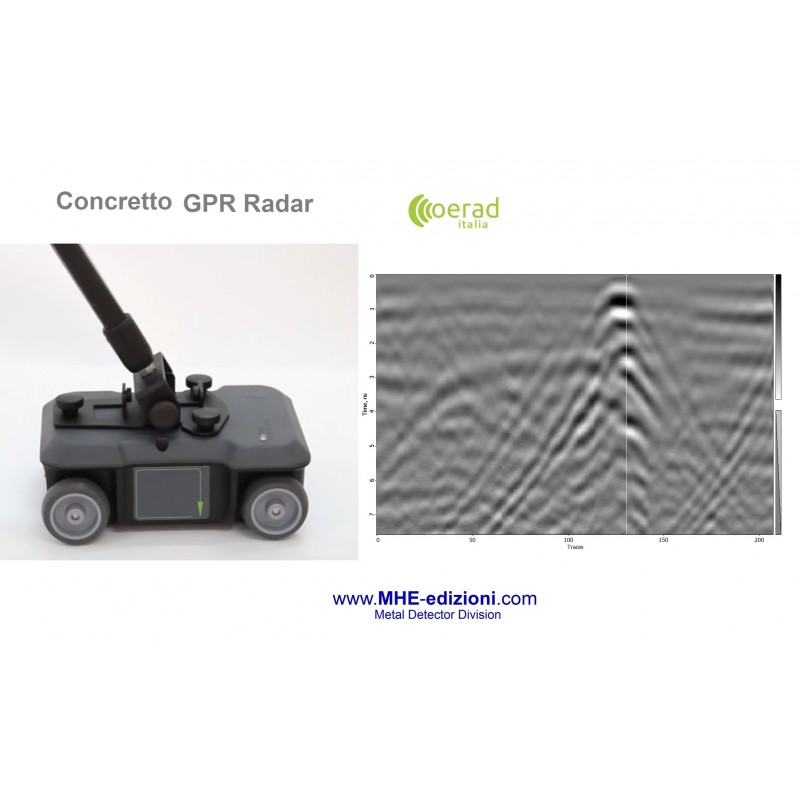

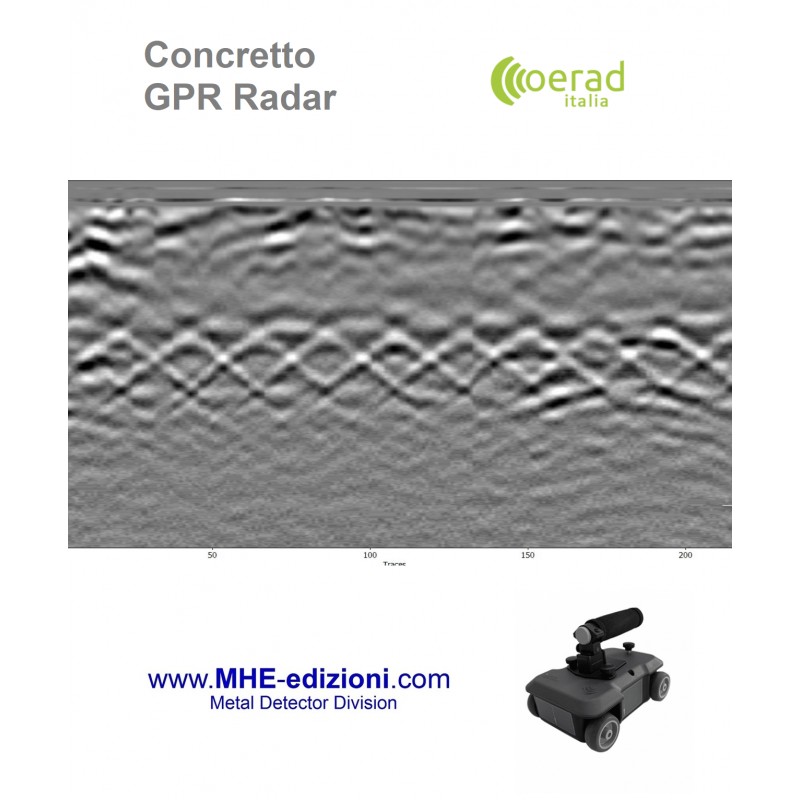

Rebar Detection & Mapping

Locate Any Pipe

Quickly find wires and cables

Detect cracks and weak spots in concrete structures

Spot air and water pockets in walls, ceilings and floors

Detect movement

Detect presence

TECHNICAL SPECIFICATIONS:

Frequency Bandwidth 200 MHz - 4000 MHz
Central Frequency 2000 MHz
Operating Time Windows 7.5 ns / 15 ns
Dynamic Range 120 dB min
Horizontal Resolution 0.001 m
Vertical Resolution 0.001 m
Pulse Repetition Frequency 1 MHz
Pulse Length 600 ps
Pulse Energy 30 V
Pulse Rise Time 200 ps
Peak Tx Power 3 W
Power Consumption 110 mAh
Batteries 10 x 900 mAh NiMH 1.2 V
Autonomy with One Charge 8 h
Charge Time 1.5 h
ADC Range 8 bits
Data Acquisiton Rate 18.2 traces/second
Samples per Trace 585
GPR Interface UART over USB
Operating Temperature Range -5° C to 40° C
Water Resistance IP 52
Size 14.5 / 20 / 8 cm
Weight 1 kg
