Deeptech Digital Ground Pioneer 4500 Metal Detector GP4500

Deeptech Digital Ground Pioneer 4500 Metal Detector GP4500

The Digital Ground Pioneer 4500 is totally new high technology pulse induction detector - combination of Metal detector and Magnetometer Sensor System, one of the best professional pulse induction metal detectors in existence. RS 232 port is propvided for connection port to computer and GPS system for localizing. Ground Pioneer 4500 is designed for detecting deeply buried or lost metal objects, metal pipes, underground communication equipment, treasures and similar objects. The unit works by the principle of electromagnetic induction at very low frequency, which allows penetration deeply in the ground. The depth,combined with iron object discrimination, automatic tuning and the choice of different regimes for searching, make the unit hardly replaceable in a lot of situations. The GP4500 can easily detect larger objects buried up to 8m deep.

TECHNICAL CHARACTERISTICS

• Working voltage: 12V
  RS 232 port is provided for connection to computer and GPS system for localization
  Baud Rate: 19200
  Data bits: 8
  Stop bits: 1
  Com port setup: 19200 8n1
  ADC raw data format
  Continuous power consumption: min 240mA (with no sound and light)
  Pick power: >250 W
  Maximum power consumption: 280 mA
  Working Frequency: 100 Hz
  Sound Range: 0,1Hz - 6,5kHz
  Battery: Rechargeable 1,3 (2,3-optional) Ah, hermetic, acid Battery
  Charger input (adapter): 100/240V 50/60 Hz/AC
  Charger output: 14.6 VDC 500mA
  Battery Charging Time (empty): Max.10 hours
  Full Microprocessor Control
  Automatic Ground Balance
  Auto Tracking
  Manual Tuning
  Delay control
  Graphic Mode Analyzing Target

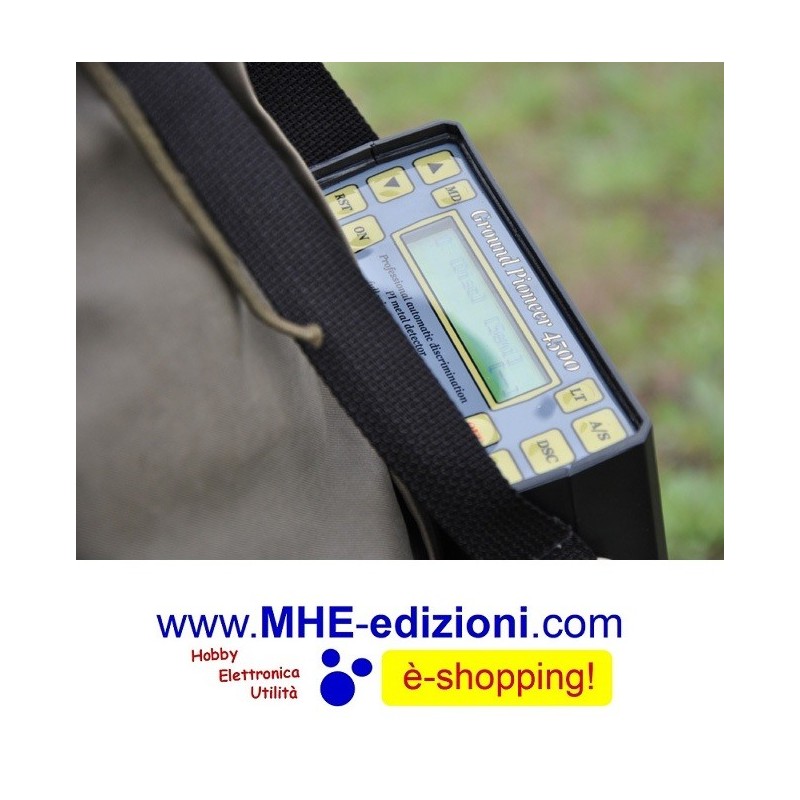

  Display: 20/2 LCD module with back light with three mode
  All metal/No-Motion mode
  Audio and Visual Discrimination Mode (by built-in Magnetometer-Sensor System)
  Depth Control for Maximized Detection Depth
  Reset controls for easy operation
  Headphone input: 1/4” Mono Jack
  External Power Supply
  Protection against reverse polarity
  Optimal Temperature Range:-10 to 50 Degrees C

Recommended Application

• Deep treasure
